Easy Maintenance Retractable Idler
EMRI — Easy Maintenance Retractable Idler frame
The EMRI Return Idler Frame is a drop-in, retractable idler solution that gives safe, direct access for roller change-outs without altering your conveyor geometry. It maintains identical parameters to your existing return idler design, adding a retractable trolley and an integrated belt-lifting system that raises the belt clear of the rollers.

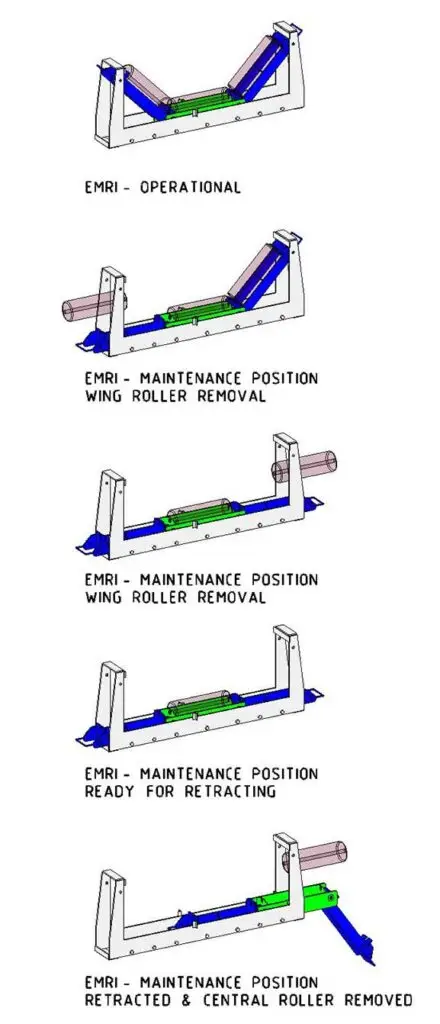

A positive locking arrangement holds the roller trolleys in an inclined position during operation. During maintenance the trolleys are lowered to horizontal and slide out for ergonomic access at the side of the conveyor. Installation is simple: the EMRI frame replaces the existing return idler assembly with no modification to the conveyor structure.
Roller change-out in five steps
- Remove the M20 locking bolts holding the trolleys in their inclined operating position
- Lower the trolleys to horizontal

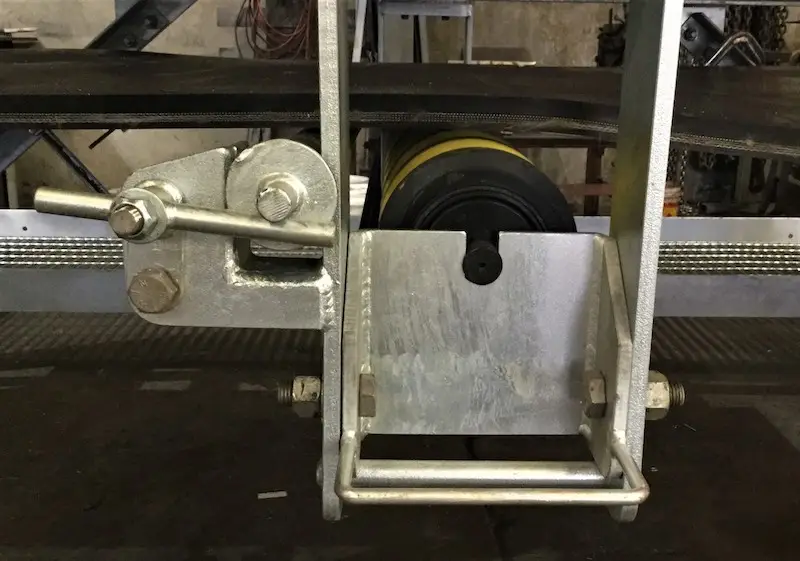

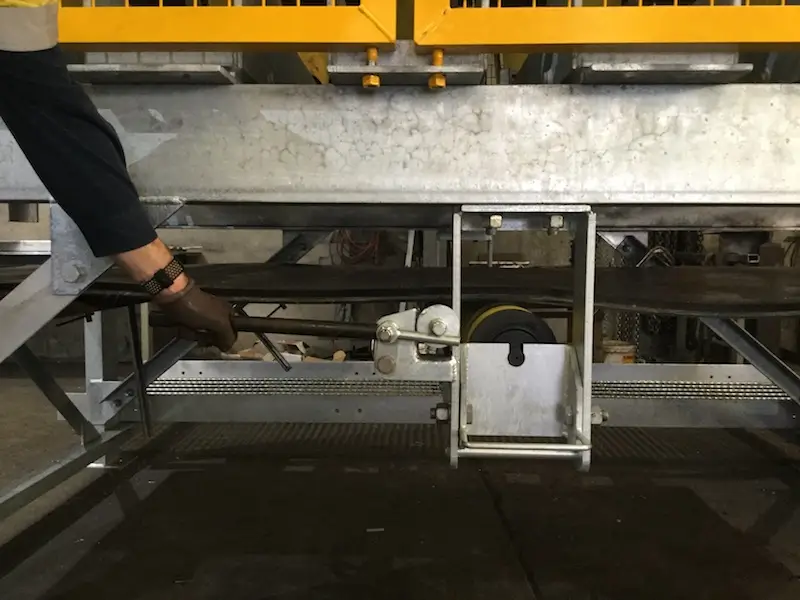

- Engage the built-in belt lifter to raise the belt clear of the rollers
- Slide the trolleys out for direct access — no reaching under the belt

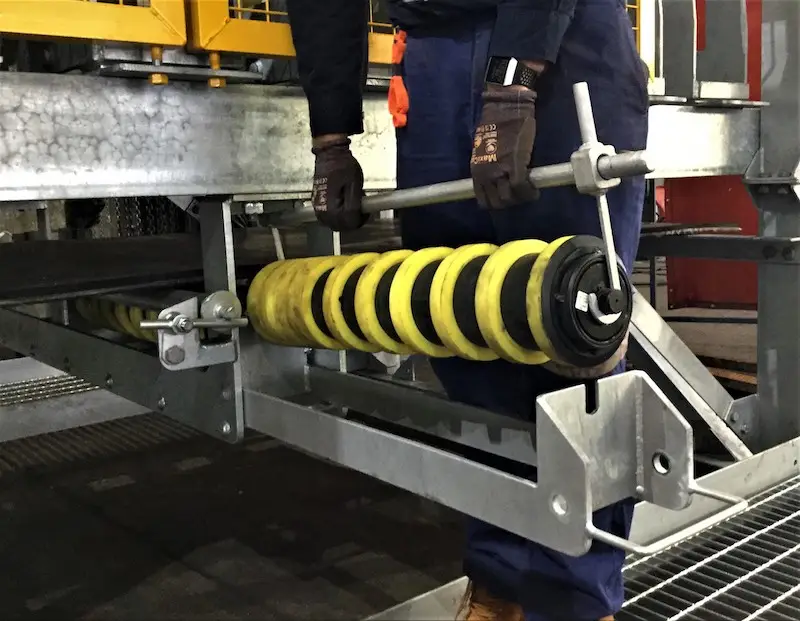

- Replace rollers using the dedicated removal tool, slide back, re-lock
Why choose the EMRI frame
- Zero-modification install — replaces your existing return idler frame; belt line and geometry unchanged
- Safer maintenance — no reaching under a live belt, less awkward manual handling, lower manual-lift risk
- Faster change-outs — tool-controlled access and stable belt lifting cut change-out duration
- Vibration-proof locking — inclined trolley position held by M20 bolts during operation
Frequently asked questions
Does the EMRI change my belt line or conveyor design?
No. It maintains identical parameters to your existing return idler design — it’s a like-for-like replacement with retractability added.
Do we need separate belt-lifting equipment?
No. The belt-lifting mechanism is integrated into the frame and raises the belt clear of the rollers as part of the change-out sequence.
What conveyor sizes does it suit?
EMRI frames are matched to your existing return idler dimensions — send us your frame details and we’ll confirm fit.
