Frame Style Vulcaniser

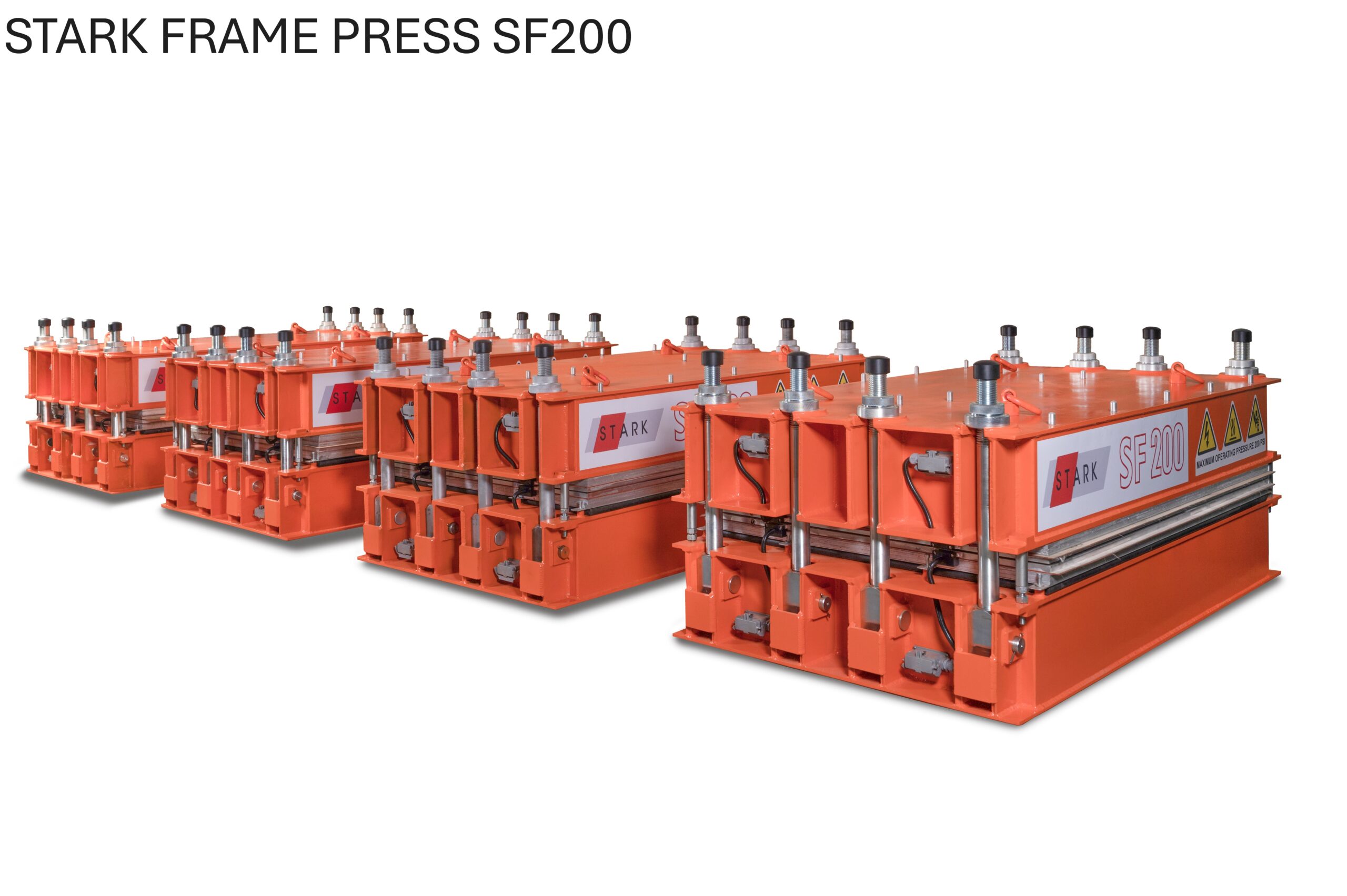

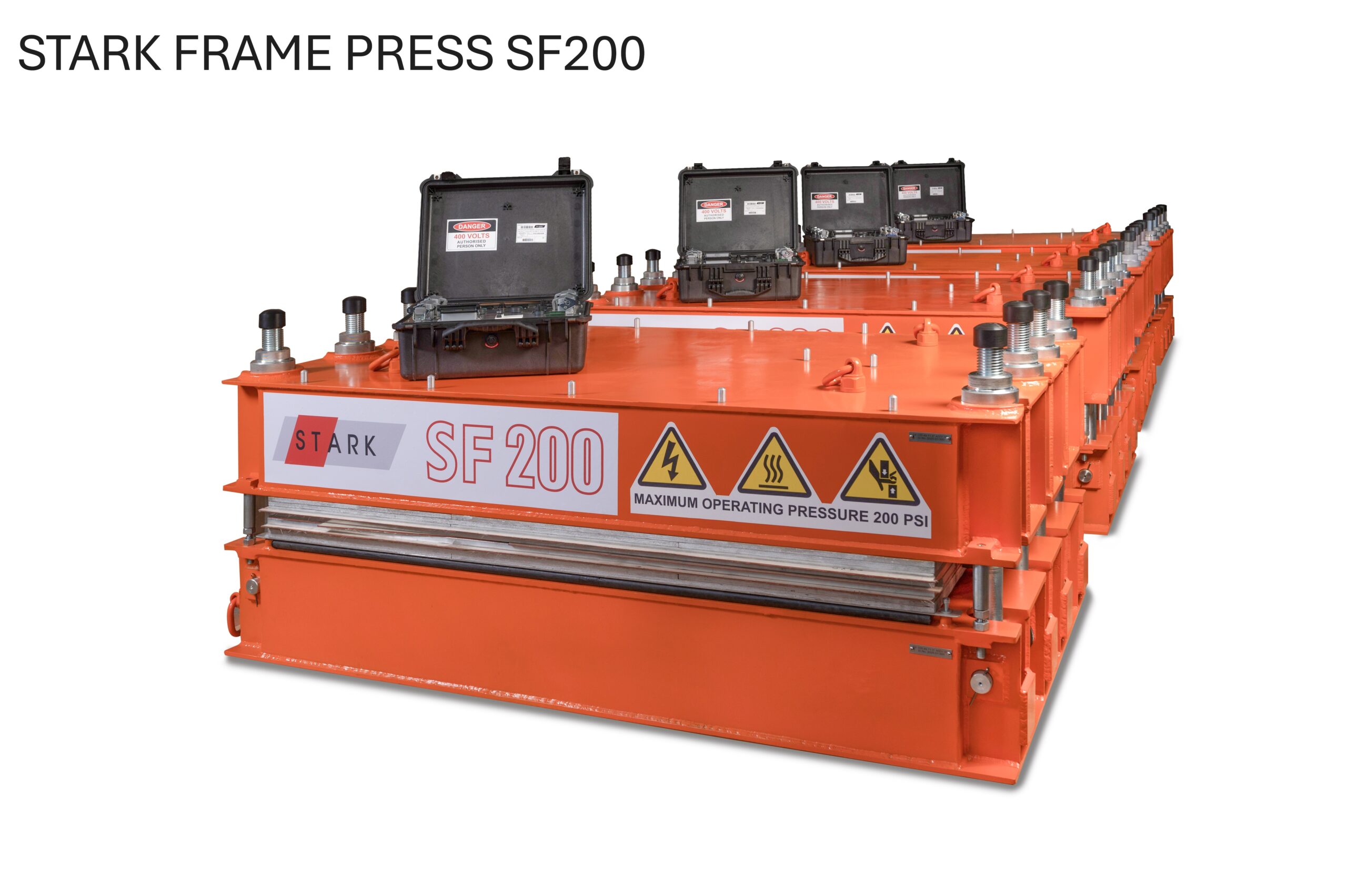

STARK SF frame-style vulcaniser
The STARK SF is a solid aluminium frame-style vulcanising press built for quick, easy operation in the harshest mining environments. Two light, rugged aluminium frames form the upper and lower portions of the press, with end carry handles on smaller models making it easy to manoeuvre into splice position.
The innovative flexible platen — extruded plank construction with silicone heating elements and durable composite insulation — contours to the belt’s irregularities, ensuring even heat distribution and uniform splice quality. A pressure bag delivers uniform pressure across the splice surface, and quick cooling is achieved by channelling water through the extruded platen, cutting turnaround time between splices.
SF Series specifications
| Frame material | High-grade aluminium |
| Heating | Electric shielded silicone elements |
| Maximum vulcanising temperature | 163°C |
| Platen bias options | 0°, 17°, 22° |
| Cooling | Water cooled via platen channels |
| Pressure | Pressure bag for uniform distribution |
| Sizes | All standard sizes; custom on request |
Why choose the STARK SF frame press
- Flexible platen conforms to belt irregularities for uniform vulcanisation
- Lightweight portability — aluminium frames with carry handles
- Water-cooled platens reduce downtime between splices
- Electronic temperature control for consistent, repeatable splice quality
Frequently asked questions
Frame press or sectional press — which do I need?
The SF frame press suits belts where a single-frame press covers the splice; for wider belts and steel cord splices requiring modular traverse bars, see the STARK sectional vulcaniser press. We’ll size the right press from your belt width and splice length.
What belts can it splice?
Fabric ply belts, with bias options of 0°, 17° and 22° to match your splice design.
