Lining Rubber
Wear and corrosion protection, matched to the duty
Mine Supply International stocks a comprehensive range of lining rubber engineered for wear and corrosion protection in chutes, hoppers, pipes, tanks, mills and other high-wear areas. The right compound depends on what’s attacking your equipment — wet abrasion, sharp impact, oil, chemicals, UV or heat. Use the selection guide below, or send us the duty and we’ll match the grade.
Selection guide
| Product | Compound | Key resistances | Bonding | Typical use |
|---|---|---|---|---|
| R-Line 38 | Premium natural, 38 mm | High impact, severe abrasion | Pre-buffed | Chutes and hoppers, heavy duty |
| R-Line 40 | Premium natural, 40 mm | High impact, severe abrasion | Pre-buffed | Hardest-wearing transfer points |
| MSI 38 | Natural, elastic | Wet slurry, abrasion, cuts, mild chemicals | Neoprene CN layer | Wet slurry equipment |
| MSI 40 | Natural, flexible | Wet & dry abrasion, sharp particle impact, mild chemicals | Neoprene CN layer | General mining wear areas |
| MSI 40 UV | Natural + carbon fillers | Abrasion, mild chemicals, ozone & UV | Neoprene CN layer | Outdoor installations |
| MSI 60 | Durable elastic blend | Abrasion, impact, mild chemicals, ozone & UV | Neoprene CN layer | High-wear industrial duty |
| Mill Backing | Premium grade | Moderate abrasion & impact, cuts, ozone & UV | Pre-buffed | Behind mill liners and wear plates |
| R-Line NBR | Premium nitrile | Oil, petroleum products, water, abrasion, temperature swings | Pre-buffed | Oily and petroleum environments |
| MSI NBR | Premium nitrile | Oil, petroleum, water, abrasion, moderate chemicals | CN bonding layer | Processing plants with oil exposure |
| MSI CR | Premium Neoprene | High temperature, flame, oil, abrasion, moderate chemicals | CN bonding layer | Hot or flame-risk service |
| Butyline | Butyl | Gases, acids, broad chemicals; outstanding impermeability; heat & ozone | Pre-buffed | Chemical processing, storage tanks, piping |
| Food Grade 40 | Non-toxic elastic | Abrasion, cuts; FDA 21 CFR 177.2600 compliant | Pre-buffed | Direct food contact processing |
General wear protection
For abrasion and impact duty, the natural rubber families do the work: R-Line 38 and 40 premium linings give maximum thickness for the hardest-wearing transfer points, while MSI 38, 40, 40 UV and 60 cover wet slurry, mixed wet/dry abrasion, outdoor UV exposure and high-wear industrial applications. Mill Backing grade cushions behind mill liners and wear plates. MSI grades bond through a specially formulated Neoprene CN layer for secure adhesion to metal; R-Line grades come pre-buffed for superior adhesive installation.
Chemical, heat and specialty grades
Where oil, chemicals or heat drive the failure mode: R-Line NBR and MSI NBR nitrile grades resist oil, petroleum products and water; MSI CR Neoprene adds high-temperature and flame resistance; and Butyline butyl rubber provides outstanding impermeability to gases and acids for chemical processing, tanks and piping. For food processing, Food Grade 40 is FDA 21 CFR 177.2600 compliant for direct food contact.
Frequently asked questions
How do I choose between MSI and R-Line grades?
Both are premium wear compounds — the practical differences are bonding system (CN layer vs pre-buffed) and duty focus. Send us the application and we’ll specify the grade and thickness.
Can lining rubber be supplied cut to size?
Yes — linings are supplied to suit your panels and installation method, with pre-buffed surfaces or CN bonding layers ready for adhesion to metal.
What about combined chemical and abrasion duty?
That’s usually a nitrile (NBR) or Neoprene (CR) grade — both carry solid abrasion resistance alongside their chemical properties.
Related: Alien chute liners · Kombo Washer mill liner sealing · Transfer chutes

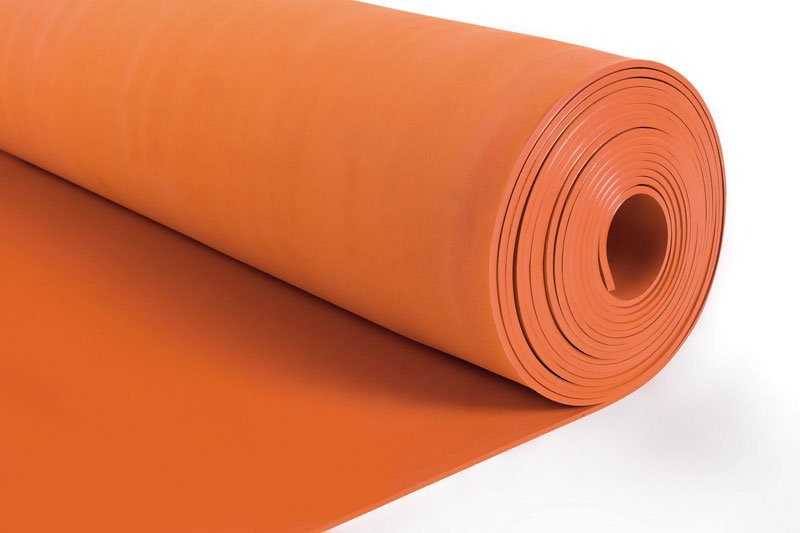

R-Line NBR Lining Rubber
R-Line NBR is a premium-quality Nitrile rubber engineered for demanding environments. It offers excellent resistance to oil, petroleum-based products, and water, along with solid protection against temperature changes, abrasion, and moderate chemicals. Ideal for industrial applications, R-Line NBR features a pre-buffed side to ensure superior adhesion during installation. Its durability and reliability make it a trusted choice for enhancing equipment performance and longevity.

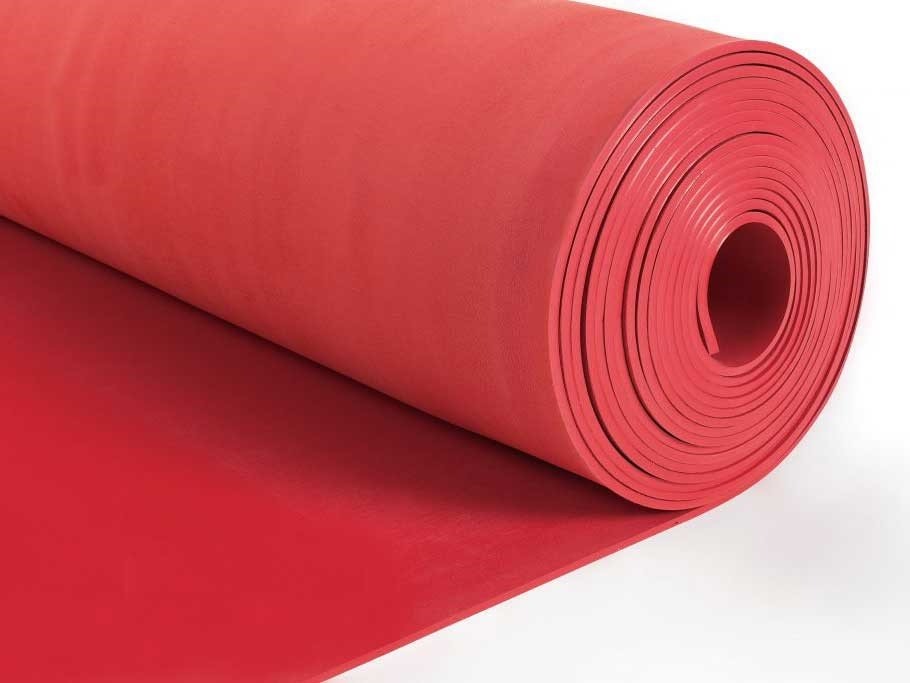

R-Line 38 Premium Lining Rubber
R-Line 38 Premium Lining Rubber is engineered for superior wear resistance in high-impact and abrasive applications. With a thickness of 38mm, it provides long-lasting protection for chutes, hoppers, and other material handling equipment. This premium rubber lining reduces maintenance, extends equipment life, and enhances operational efficiency, making it ideal for harsh mining and bulk material environments.
R-Line 40 Lining Rubber
R-Line 40 Premium Lining Rubber is specifically designed to withstand the harshest conditions in high-impact and abrasive environments. With a robust 40mm thickness, this high-performance rubber lining delivers exceptional wear resistance, extending the life of material handling equipment and reducing downtime. This advanced rubber coating lowers upkeep, boosts equipment lifespan, and improves overall efficiency, making it perfect for tough mining and material handling sites.
MSI 38 Lining Rubber
MSI 38 Lining Rubber is a durable, elastic natural rubber compound designed to withstand harsh conditions. It provides excellent resistance to wet slurry, abrasion, mild chemicals, and delivers strong cut resistance for extended wear life. This lining features a specially formulated Neoprene CN bonding layer, ensuring secure adhesion to metal surfaces. Ideal for mining and material handling equipment, MSI 38 enhances protection and reduces maintenance needs.
MSI 40 Lining Rubber
MSI 40 Lining Rubber is a high-performance natural rubber compound designed for flexibility and durability. It offers excellent resistance to both wet and dry abrasion, sharp particle impact, and mild chemical exposure, making it ideal for tough industrial environments. MSI 40 Lining Rubber is a high-performance natural rubber compound designed for flexibility and durability. It offers excellent resistance to both wet and dry abrasion, sharp particle impact, and mild chemical exposure, making it ideal for tough industrial environments
R-Line NBR Lining Rubber
MSI 40 UV Lining Rubber MSI 40 UV Lining Rubber is a flexible natural rubber compound enhanced with carbon fillers for added durability. It offers excellent resistance to abrasion, mild chemicals, and harsh environmental factors like ozone and UV exposure, making it ideal for outdoor and industrial applications. This lining is equipped with a Neoprene CN bonding layer to ensure strong, long-lasting adhesion to metal surfaces. MSI 40 UV is a reliable choice for protecting equipment in demanding conditions while minimizing wear and maintenance.

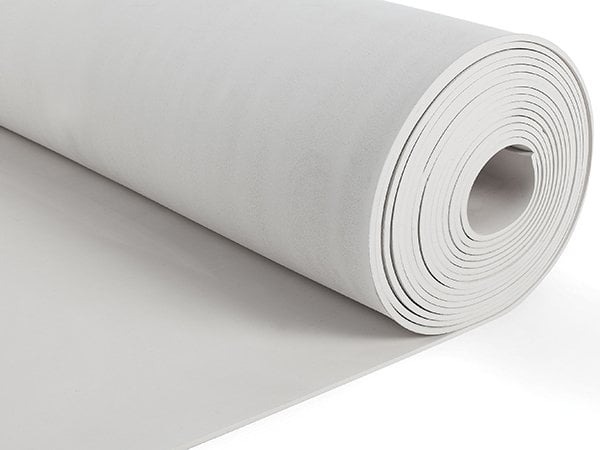

Food Grade 40 Lining Rubber
Food Grade 40 Lining Rubber is an elastic, non-toxic rubber compound specifically formulated for use in food processing environments. It offers excellent abrasion resistance and strong cut resistance, ensuring durability and safety during handling and production operations. Compliant with FDA 21 CFR 177.2600 standards, this rubber is safe for direct food contact. It also features a pre-buffed side for improved adhesion, making installation secure and reliable in hygienic and industrial settings.
MSI 60 Lining Rubber
MSI 60 Lining Rubber, is a durable and elastic rubber compound engineered to withstand tough industrial conditions. It delivers excellent resistance to abrasion and impact, while also offering protection against mild chemicals and environmental elements like ozone and UV rays. This lining features a special Neoprene CN bonding layer that ensures superior adhesion to metal surfaces, enhancing installation strength and longevity. MSI 60 is ideal for high-wear applications where durability and dependable performance are essential.
Mill Backing Lining Rubber
Mill Backing Lining Rubber is a premium-grade compound designed to provide reliable protection in demanding industrial environments. It offers moderate resistance to abrasion and impact, along with good cut resistance, making it suitable for heavy-duty applications. In addition to mechanical durability, it resists mild chemicals and exposure to ozone and UV rays, enhancing its longevity in both indoor and outdoor conditions. The pre-buffed surface ensures strong adhesion to metal, allowing for secure and efficient installation.
Butyline Lining Rubber
Butyline Lining Rubber is a high-quality rubber compound formulated from butyl, known for its excellent resistance to gases, acids, and a wide range of chemicals. It provides outstanding impermeability and performs exceptionally well in environments involving chemical processing, storage tanks, and piping systems. This lining also offers good heat and ozone resistance, making it suitable for both indoor and outdoor applications. With a pre-buffed surface for strong adhesion, Butyline ensures long-lasting protection and minimizes maintenance in corrosive service conditions.
MSI NBR Lining Rubber
MSI NBR is a premium Nitrile rubber compound designed for demanding industrial applications. It offers excellent resistance to oil, petroleum-based products, and water, along with strong abrasion resistance and reliable performance under varying temperatures. Engineered for durability, MSI NBR also provides moderate chemical resistance, making it suitable for a range of processing environments. The inclusion of a special CN bonding layer ensures superior adhesion to metal surfaces, enhancing installation strength and service life.
MSI CR Lining Rubber
MSI CR Lining Rubber, is a premium Neoprene rubber designed for performance in harsh environments. It offers excellent resistance to high temperatures and flame, along with reliable protection against oil exposure and surface abrasion. Ideal for industrial and processing applications, MSI CR also provides moderate chemical resistance, making it versatile across various demanding conditions. The special CN bonding layer ensures strong adhesion to metal surfaces, promoting long-term durability and reducing maintenance needs.
